Component
- Material
- Aluminum Alloy
- Grade
- A7075-T6
- Machining
- CNC Turn-Mill Machining + CNC Machining
- Surface treatment
- No Surface Treatment
- Corresponding photos
- 1 / 2 / 3

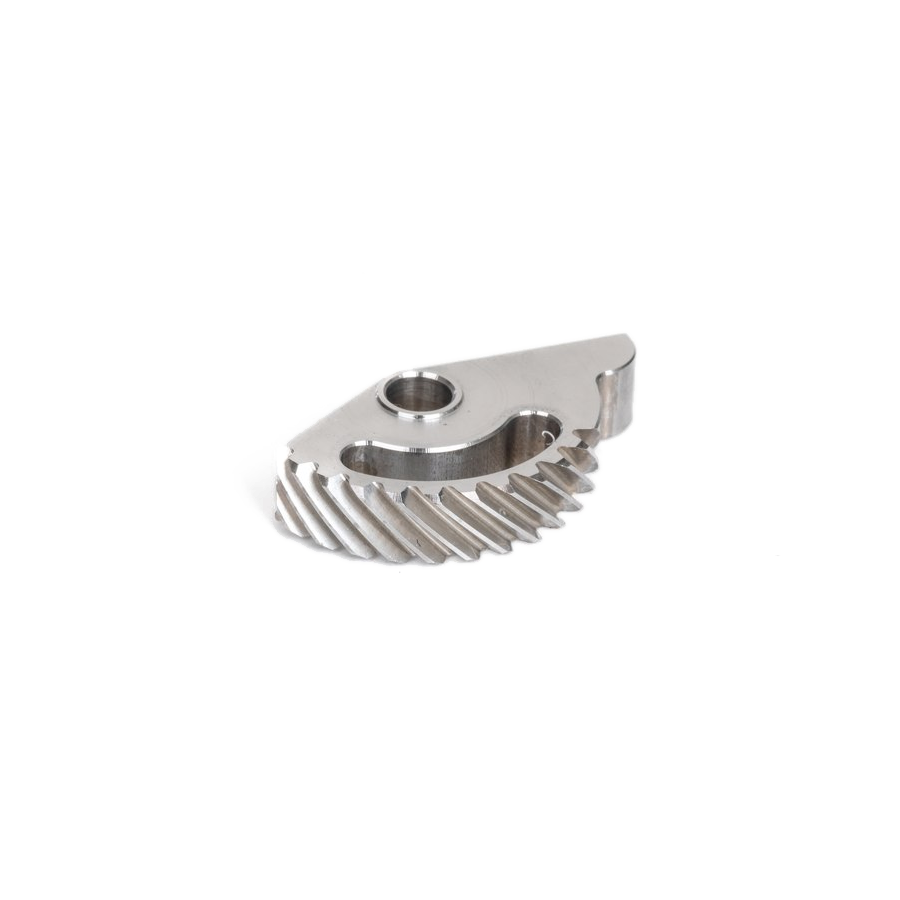

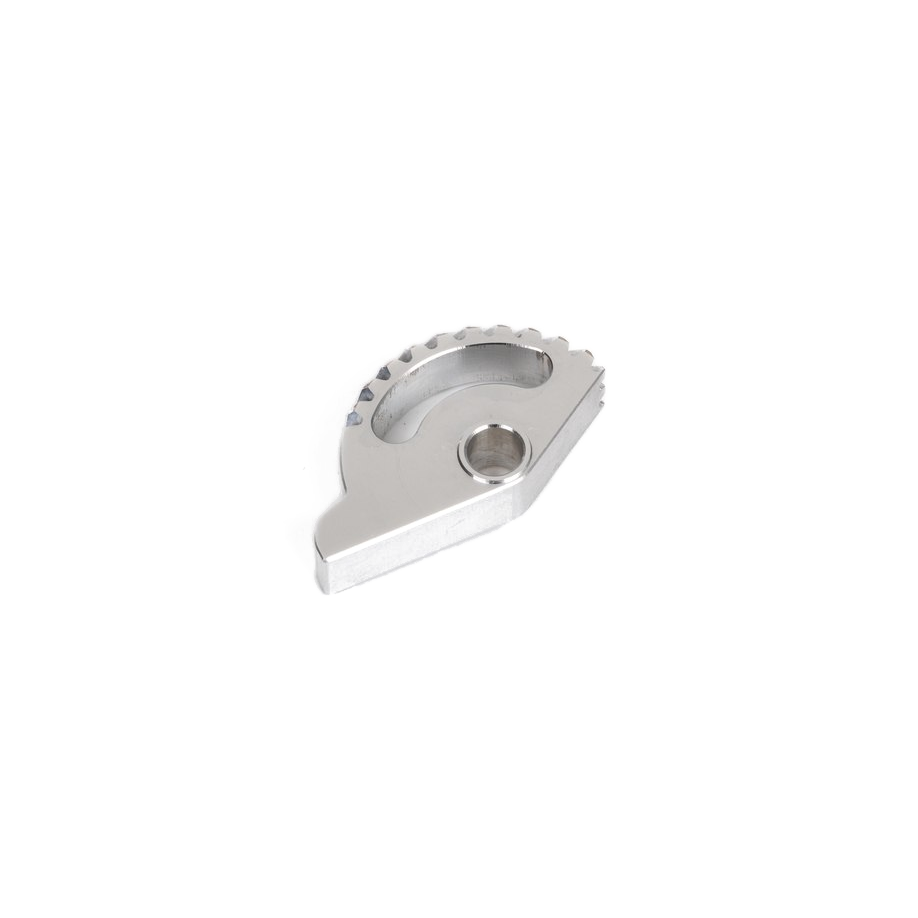

Product photographs1 / 3
Others
Helical Sector Gear
PRD-017 · Made to drawing
This helical sector gear is a manufacturing example from our others collection. The photographs and specifications below describe the shown part; a new order is reviewed against your own drawing.
- Material grade
- A7075-T6
- Components / versions
- 1
Material & manufacturing details
Shown exampleYour drawing, your specification
Plan a similar component
Use this case as a starting point. Material, dimensions, tolerances and finishing requirements must be specified for your project. The shown case does not define a standard stocked product.
Share the drawing
Include key dimensions, tolerances and any mating requirements.
Specify material & finish
Identify the component, material grade and required surface treatment.
Confirm quantity & timing
Tell us the requested quantity and target date for project review.
