MAX Sleeve Components

PRD-026 · Made to drawing

This max sleeve components is a manufacturing example from our atomizer & nozzle components collection. The photographs and specifications below describe the shown part; a new order is reviewed against your own drawing.

Material grade: A6061-T6
Components / versions: 1

Enquire about a similar part ↗Explore this application →

Material & manufacturing details

Shown example

Component

Material: Aluminum Alloy
Grade: A6061-T6
Machining: Swiss-Type Machining
Surface treatment: Black Anodizing + Laser Engraving

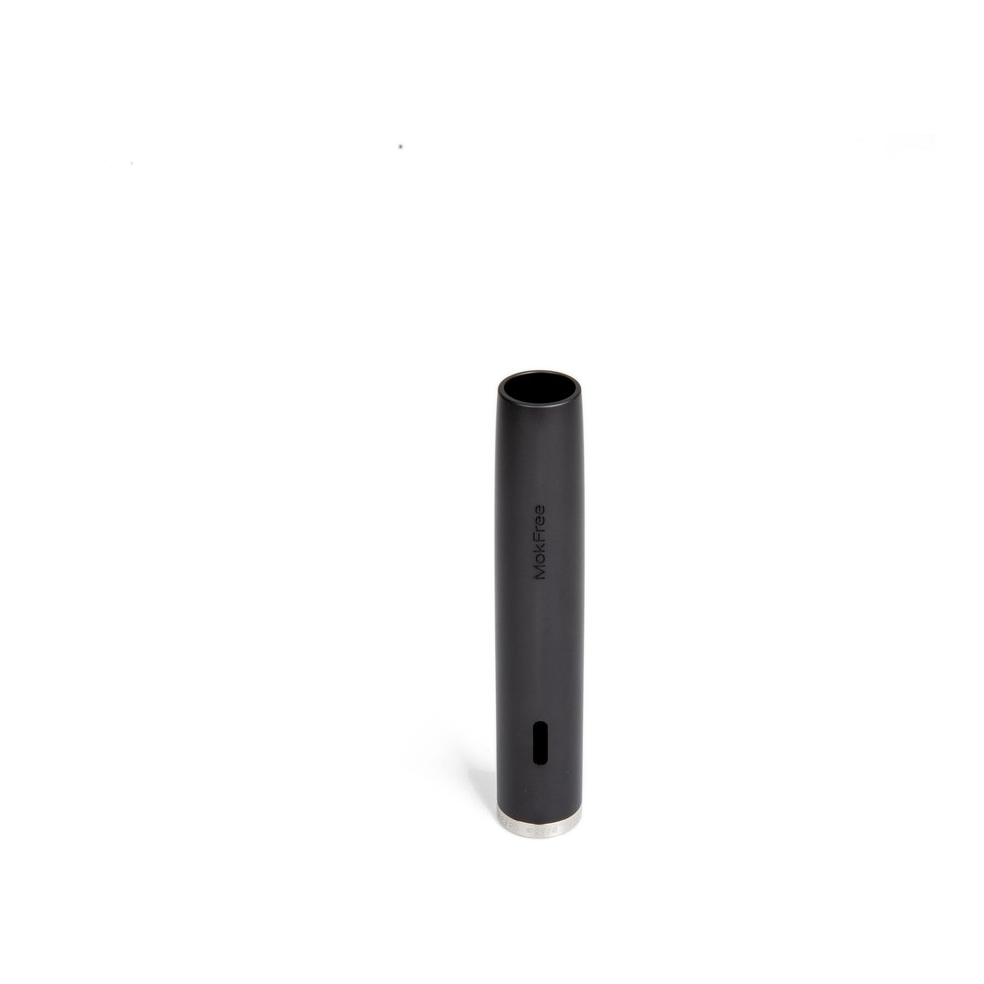

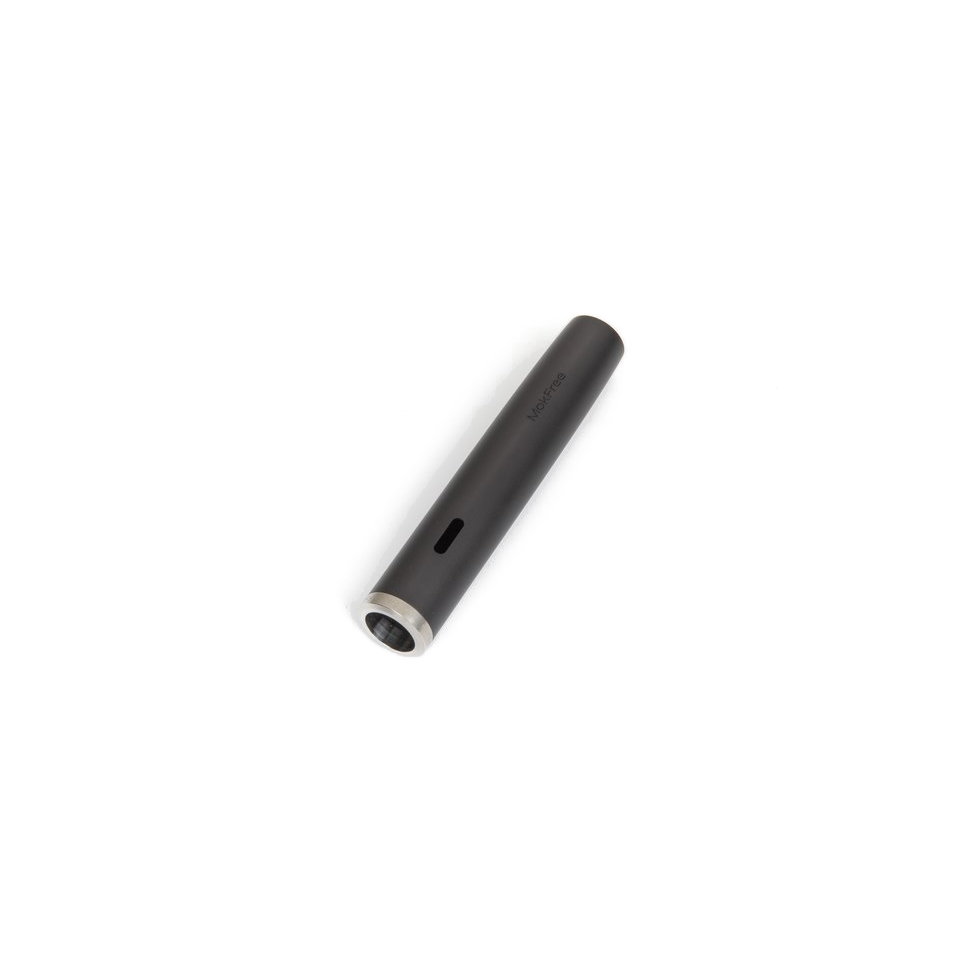

Corresponding photos: 1 / 2 / 3

Your drawing, your specification

Plan a similar component

Use this case as a starting point. Material, dimensions, tolerances and finishing requirements must be specified for your project. The shown case does not define a standard stocked product.

Share the drawing
Include key dimensions, tolerances and any mating requirements.
Specify material & finish
Identify the component, material grade and required surface treatment.
Confirm quantity & timing
Tell us the requested quantity and target date for project review.
